Leveling Caster Wheels

NEW PRODUCT

Leveling Caster Wheels

the quickest and safest way to relocate industrial equipment.

What is a Leveling Caster Wheel?

Moving heavy industrial equipment has always been a hassle. This doesn't have to be the case anymore. Pairing T slot structures with leveling caster wheels creates an easy-to-move structure. Did we mention that it is safe, too?

How it works

Going from point A to B is now easier than ever. Simply install the Leveling Caster Wheels and then complete the following:

1

Set the pedal to mobility mode. Raise your leveling foot by pressing up on the foot pedal.

2

Roll your equipment to the new desired position.

3

Set the pedal to fixed mode. Lower the leveling foot by pressing down on the foot pedal. Your equipment is now in its new secure fixed position.

Mobile Caster WheelsMobile

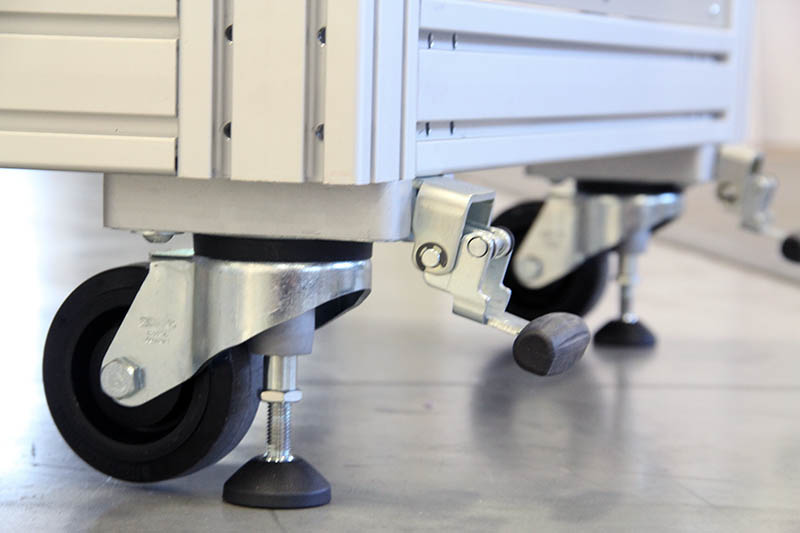

Fixed Position Caster WheelsFixed

Leveling Caster Wheel Options

Select the option below that meets your requirements.

D100 | Rubber Wheel

#144784

  • Load Rating: 2,000 N
  • Rubber wheel

D80 | Rubber Wheel

#144785

  • Load Rating: 1,700 N
  • Rubber wheel

D100 | PU Wheel

#144764

  • Load Rating: 2,000 N
  • Polyurethane wheel

D80 | PU Wheel

#144769

  • Load Rating: 1,500 N
  • Polyurethane wheel

Integrate Leveling Caster Wheels into your next project.

Start Building

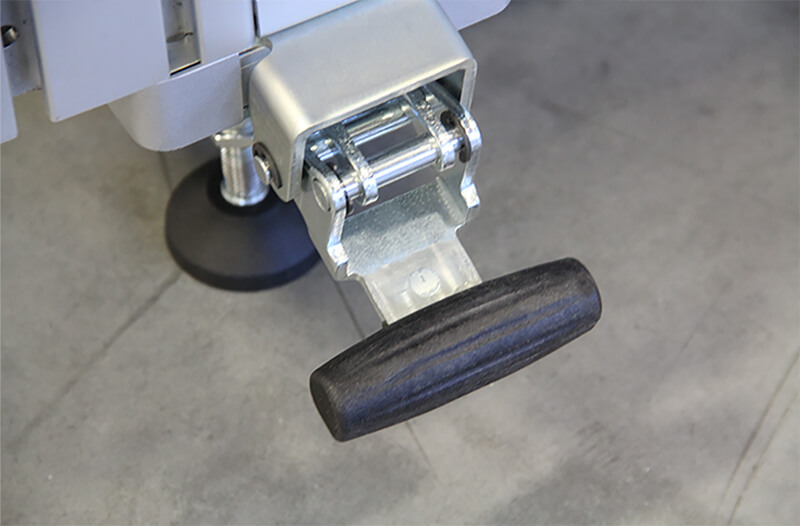

Easy adjusting caster lever

Quick and easy adjustment

A pedal that anyone can adjust.

Lifting heavy equipment has never been easier. Only 22 lbs. of direct pressure is required to lift 440 lbs. The extended lever places the foot pedal out of hazardous areas, so there is no risk of the equipment falling on the operator.

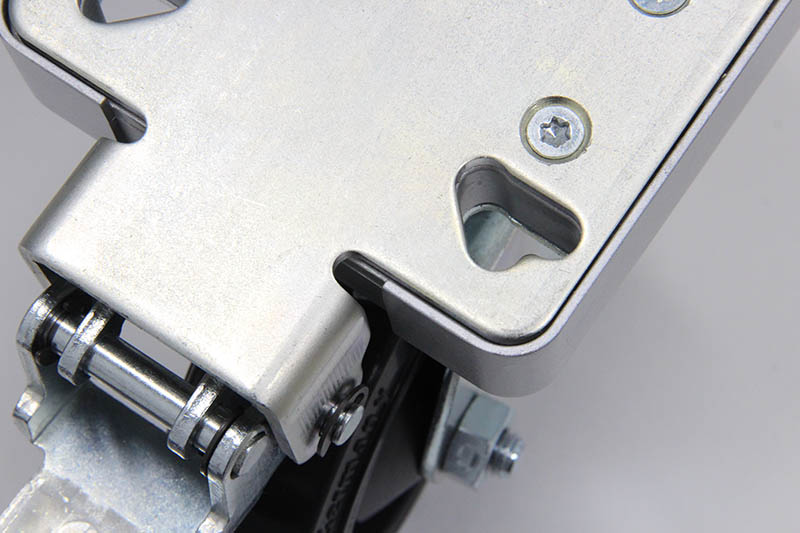

Multifunctional Slot

Multifunctional Slot

Mounting slot that works with many profiles.

The mounting slot of the Leveling Caster Wheel was designed to create flush fitment with many different types of profile. It works with MB Kit modular profile up to 80mm or even rectangular 45 series profile.

Flush mounting

Advanced Design

Mounting, color and core functionality.

Designed to appear seamless. The mounting plate is fastened flush with the profile edge. This eliminates the mount from becoming an obstruction, avoiding potential safety concerns.

The mounting plate is powder coated silver to match the profile's anodized color.

Drive objects effortlessly any direction. Leveling Caster Wheels come with a high-quality Blickle swivel caster for peak performance.

Sours: https://mbkit.com/articles/new-products/leveling-caster-wheels

adjustable leveling caster wheels

casterwheels
Collection by Our leveling casters wheels select stamping metal frame brackets.And match 2 inch or 3 inch polyamide wheels.At current the most of caster with leveling feet…
Threaded stem leveling casters Material: Cast Aluminum body with polyamide wheel Wheel Size: x x 25 ; x 30 ; x 30 ; x 33 ; x 52 Load Bearing:Plain Bore Leveling Pad Brake Metal Stamping, Wheels, It Cast, Desk, Desktop, Metal Embossing, Table Desk, Office Desk, Desk Office
[Hot Item] Threaded Stem Leveling Casters, LCWT, Caster Wheels, China, Factory, Suppliers, Manufacturers
Threaded stem leveling casters Material: Cast Aluminum body with polyamide wheel Wheel Size: Ø42 x 20;Ø50 x 25 ; Ø63 x 30 ; Ø75 x 30 ; Ø75 x 33 ; Ø96 x 52 Load Weight:50kg,250kg,500kg,750kg,1000kg,1500kg Bearing:Plain Bore Leveling Pad Brake
Leveling casters with bolt hole Material: Cast Aluminum body with polyamide wheel Wheel Size: x x 25 ; x 52 Load Bearing:Plain Bore Leveling Pad Brake Metal Stamping, It Cast, Wheels, Metal Embossing
[Hot Item] leveling casters with bolt hole, LCWBS, Caster Wheels, China, Factory, Suppliers, Manufacturers
Leveling casters with bolt hole Material: Cast Aluminum body with polyamide wheel Wheel Size: Ø42 x 20;Ø50 x 25 ; Ø63 x 30 ; Ø75 x 30 ; Ø75 x 33 ; Ø96 x 52 Load Weight:50kg,250kg,500kg,750kg,1000kg,1500kg Bearing:Plain Bore Leveling Pad Brake
Adjustable leveling casters Material: Cast Aluminum body with polyamide wheel Wheel Size: x x 25 ; x 52 Load Bearing:Plain Bore Leveling Pad Brake Metal Stamping, Wheels, Fixed Asset, Metal Embossing
[Hot Item] Adjustable leveling casters, LCWSP, Caster Wheels, China, Factory, Suppliers, Manufacturers
Adjustable leveling casters Material: Cast Aluminum body with polyamide wheel Wheel Size: Ø42 x 20;Ø50 x 25 ; Ø63 x 30 ; Ø75 x 30 ; Ø75 x 33 ; Ø96 x 52 Load Weight:50kg,250kg,500kg,750kg,1000kg,1500kg Bearing:Plain Bore Leveling Pad Brake
Sours: https://www.pinterest.com/casterwheels/adjustable-leveling-caster-wheels/
  1. Geforce 4 mx440
  2. Zinc fountains
  3. Tuk shoe sizes
  4. Agar gold unblocked

GDR-60F LEVELING RATCHET CASTERS

Back to Product Category
The GD, GDN, and GDR Series of leveling casters are a solution to the age old problem of flexible movement
combined with the ability of securely setting and braking a caster in a specific location.The leveling foot, once set
in place, provides for stable, anti-vibrational placement. Our leveling casters can easily move up to 1,100 lbs
over four casters. Greater weight requirements may require the use of more casters. Our casters are being used
on work stations medical, computer, communication, printing, woodworking, automation and assembly equipment.
They are typically found in all manufacturing environments, including clean room and laboratory facilities.
gdr-60f leveling ratchet castersSPECIFICATIONS
Load Capacity (per caster): 550 lbs (250 kg)
Recommended Load (4 casters): 1,100 lbs (500 kg)
Temperature Range: +14 ~ +194° F (-10 ~ +90° C)
Weight: 1.8 lbs (0.8 kg)
Top Plate (1): Pressed Steel
Frame Material (2): Aluminum DieCast
Handle (3): Ratchet Tool
Leveling Pad Material (4): NBR
Wheel Material (5): Nylon-6
Surface Treatment: Powder Coated & Zinc Galvanized
OPTIONS
Leveling Pad: Polyurethane or Anti-static Polyurethane
Wheel Material: Polyurethane with Aluminum Core

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.

Model No. Top Plate (bolt hole pattern) Load O.A.H. Weight Price (each)
GDR-60F 2 7/8 x 2 7/8" (2 9/32 x 2 9/32") 550 lbs. 3 7/32" 1.8 lbs. $73.00

Understand Leveling Casters...
series gd leveling stem castersMoving a piece of equipment into a desired location, applying
a wheel braking mechanism, and setting the unit into an exact
position; is easier said than done in many caster applications.
Our leveling casters offer a simple solution. After installation
of the appropriate number of leveling casters, with either
standard top plates or threaded stems, the equipment is
easily pushed into position. Once positioned in the exact spot
of operation, the anti-vibration foot/pad is lowered, the caster
wheel is lifted off the ground, making the equipment completely
stationary. This pad allows for minor adjustments in leveling
requirements. When your equipment needs to be moved out
of the way; just raise the anti-vibrational foot/pad and push it
easily to a new location.

Three types of handlesLeveling casters utilize three devices to raise and lower anti-vibration foot/pad.
The standard device found on on all light and medium duty casters is the
orange manual wheel, easily turned to raise and lower the stabilizing foot.
For the more ergonomic requirement, a self contained ratcheting device is
offered. In the heavier duty models the adjustment is made by turning a nut
with the help of a standard wrench, offering greater leverage.

Manual Handle

Nut

Ratchet


Advantages
(1) Raw Materials are higher quality.
Good material is a start of the uncompromised top quality.
Even if it is hard to see, there are big differences in raw
material quality. We are choosing the consistent higher
quality material for aluminum and nylon.
(2) Innovative Axle
(3) Heated Raceway
Continuous innovation is our core competencies.
Innovative Axle...
a patented system, to eliminate the hazards such as vibration
axle in a moving mode, resulting in protecting your equipment
and operator.
gd series leveling plate castersHeat Treated Raceway...
Unlike most leveling casters found on the
market today, we manufacture and install
a heat treated steel raceway between the
die-cast aluminum body and the upper ball
race for smoother swivel operation and
longer product life.

Axle


(4) All production processes are kept in house to maintain higher quality, which is managed
     under ISO 9001.
Unlike most of competitors who had phased out in-house production. G-dok deeps the in-house production with
craftmanship. It has always been our philosophy that we cannot get the best quality if we do not do it ourselves,
and that quality is the only thing that endures.

(5) Ratchet system
Ratchet leveling casters are patented by G-dok.
For easier use, the self-contained ratcheting device is offered.
This device is protected by the patent law, so no competitor
can imitate this product.
(6) RoHS100% of all components found in the leveling
casters are manufactured to comply with world
wide RoHS requirements.


(8) Side and Back Access
Convenient multiple designs
We offer two type of access in leveling caster use. The single rear access opening, offered by most leveling caster
manufacturers, can be a limiting feature in variety of applications. We offer an additional body design with two sides
access, where the application thumb wheel might be limited. This design with a rear support structure additionally
adds strength and durability to the body in more demanding applications.
Leveling Stem Casters, Plate Casters, Retractable Caster, Adjustable Casters, Lifting Caster, Ratchet Caster, Leveling Casters, Swivel Caster, Nylon Wheels, Leveling Pads, and Locking Casters from your source for material handling equipment.

Back to Product Category
Sours: https://www.gilmorekramer.com/more_info/gdr_60f_leveling_ratchet_casters/gdr_60f_leveling_ratchet_casters.shtml
Retractable Leveling Casters - Full Tutorial Video

About Casters and Wheels

Leveling Plate Casters

With Thumbwheel Adjustment

With Ratchet Adjustment

With Nut Adjustment

Use screws or bolts to attach the mounting plate on these casters to a flat surface. Adjust the leveling pad to keep your equipment stationary and compensate for uneven floors.

Nylon wheels are impact- and wear-resistant. They work well on smooth surfaces.Polyurethane wheels combine the abrasion resistance of plastic with the shock-absorbing qualities of rubber. Their aluminum core adds strength to the wheel without sacrificing cushioning. Use them on smooth or rough floors and in areas with debris.

Casters with 304stainlesssteelframe offer good corrosion resistance.

Ballbearings provide smooth swiveling.Double-ballbearings swivel more smoothly than ball bearings.

Kingpinlessswivel construction distributes impact better than standard kingpin casters, enabling smooth swiveling and extending service life.

Turn the thumbwheel to lower or raise the leveling pad.Ratchet pulls out for easy adjustment and retracts out of the way when not in use.Nut adjustment requires a wrench to move the leveling pad.

3D CAD models availableFor technical drawings and 3-D models, click on a part number.

Wheel

Adjustment

Mounting
Plate

Screw

Frame

Swivel

Dia.Wd.Mount
Ht.
Cap. per
Caster,
lbs.
StyleNut
Thread
Size
Lg.Wd.For
Screw
Size
SizeLg.Mounting
Fasteners
Included
MaterialColorSwivel
Construction
Swivel
Bearing
Type
 Each

Black Solid Nylon Plastic Wheels—Hard

1 5/8"3/4"2 13/16"-3 3/16"50Thumbwheel__2 1/8"2 1/8"1/4"____NoPowder-Coated AluminumBlackKingpinDouble Ball0000000000000
1 5/8"3/4"2 13/16"-3 3/16"50Thumbwheel__2 1/8"2 1/8"1/4"____NoPowder-Coated AluminumIvoryKingpinDouble Ball000000000000

Nonmarking Black Solid Nylon Plastic Wheels—Hard

2"1"3 1/4"-3 5/8"270Thumbwheel__2 7/8"2 7/8"__M69/16"YesPowder-Coated AluminumBlackKingpinDouble Ball0000000000000
2"1"3 1/4"-3 5/8"270Ratchet__2 7/8"2 7/8"__M69/16"YesPowder-Coated AluminumBlackKingpinDouble Ball0000000000000
2"1"3 1/4"-3 5/8"550Thumbwheel__3 3/4"2 1/2"__M81"YesPowder-Coated AluminumIvoryKingpinDouble Ball0000000000000
2"1"3 1/4"-3 5/8"550Ratchet__3 3/4"2 1/2"__M81"YesPowder-Coated AluminumIvoryKingpinDouble Ball0000000000000
2"1"3 5/16"-3 11/16"300Thumbwheel__2 7/8"2 7/8"__M613/16"YesPowder-Coated AluminumIvoryKingpinlessBall0000000000000
2"1"3 5/16"-3 11/16"300Ratchet__2 7/8"2 7/8"__M613/16"YesPowder-Coated AluminumIvoryKingpinlessBall0000000000000
2"1"3 5/16"-3 11/16"550Thumbwheel__2 7/8"2 7/8"__M613/16"Yes304 Stainless Steel__KingpinlessBall00000000000000
2"1"3 5/16"-3 11/16"550Ratchet__2 7/8"2 7/8"__M613/16"Yes304 Stainless Steel__KingpinlessBall00000000000000
2 1/2"1 1/8"4 1/8"-4 11/16"880Thumbwheel__3 9/16"3 9/16"__M81"Yes304 Stainless Steel__KingpinlessBall0000000000000
2 1/2"1 1/8"4 1/8"-4 11/16"880Ratchet__3 9/16"3 9/16"__M81"Yes304 Stainless Steel__KingpinlessBall0000000000000
2 1/2"1 3/16"4 1/32"-4 5/8"550Thumbwheel__3 9/16"3 9/16"__M813/16"YesPowder-Coated AluminumBlackKingpinDouble Ball0000000000000
2 1/2"1 3/16"4 1/32"-4 5/8"550Ratchet__3 9/16"3 9/16"__M813/16"YesPowder-Coated AluminumBlackKingpinDouble Ball0000000000000
2 1/2"1 3/16"4 3/32"-4 11/16"600Thumbwheel__3 9/16"3 9/16"__M813/16"YesPowder-Coated AluminumIvoryKingpinlessBall0000000000000
2 1/2"1 3/16"4 3/32"-4 11/16"600Ratchet__3 9/16"3 9/16"__M81"YesPowder-Coated AluminumIvoryKingpinlessBall0000000000000
2 7/8"1 3/16"4 3/4"-5 3/16"820Thumbwheel__3 3/4"3 3/4"__M101"YesPowder-Coated AluminumIvoryKingpinlessBall000000000000
2 7/8"1 3/16"4 3/4"-5 3/16"1,100NutM163 3/4"3 3/4"__M101"YesPowder-Coated AluminumIvoryKingpinlessBall000000000000
2 15/16"1 3/16"4 3/4"-5 3/16"1,650Thumbwheel__4 1/2"4"__M101"YesPowder-Coated AluminumIvoryKingpinDouble Ball0000000000000
2 15/16"1 3/16"4 3/4"-5 3/16"2,200NutM244 1/2"4"__M101"YesPowder-Coated AluminumIvoryKingpinDouble Ball0000000000000
3"1 3/16"4 3/4"-5 1/4"820Thumbwheel__3 3/4"3 3/4"__M1013/16"YesPowder-Coated AluminumBlackKingpinDouble Ball000000000000
3"1 3/16"4 3/4"-5 1/4"1,100NutM163 3/4"3 3/4"__M1013/16"YesPowder-Coated AluminumBlackKingpinDouble Ball000000000000

Nonmarking Blue Solid Nylon Plastic Wheels—Hard

3 1/2"2 3/16"5 3/16"-5 13/16"1,600NutM204"4"__M121 9/16"YesPowder-Coated AluminumBlackKingpinDouble Ball0000000000000
3 7/8"2 1/16"5 3/16"-5 3/4"1,600NutM204"4"__M121 9/16"YesPowder-Coated AluminumIvoryKingpinlessBall0000000000000

Nonmarking White Tread-on-Core Polyurethane Rubber Wheels—Hard

2"1"3 1/4"-3 5/8"550Thumbwheel__2 7/8"2 7/8"__M69/16"YesPowder-Coated AluminumIvoryKingpinDouble Ball0000000000000
2"1"3 1/4"-3 5/8"550Thumbwheel__3 3/4"2 1/2"__M81"YesPowder-Coated AluminumIvoryKingpinDouble Ball0000000000000
2"1"3 1/4"-3 5/8"550Ratchet__2 7/8"2 7/8"__M69/16"YesPowder-Coated AluminumIvoryKingpinDouble Ball00000000000000
2"1"3 1/4"-3 5/8"550Ratchet__3 3/4"2 1/2"__M81"YesPowder-Coated AluminumIvoryKingpinDouble Ball00000000000000
2 1/2"1 1/8"4 1/16"-4 5/8"1,100Thumbwheel__3 9/16"3 9/16"__M813/16"YesPowder-Coated AluminumIvoryKingpinDouble Ball000000000000
2 1/2"1 1/8"4 1/16"-4 5/8"1,100Ratchet__3 9/16"3 9/16"__M813/16"YesPowder-Coated AluminumIvoryKingpinDouble Ball00000000000000
2 15/16"1 3/16"4 3/4"-5 3/16"1,650Thumbwheel__3 3/4"3 3/4"__M1013/16"YesPowder-Coated AluminumIvoryKingpinDouble Ball00000000000000
2 15/16"1 3/16"4 3/4"-5 3/16"1,650Thumbwheel__4 1/2"4"__M101"YesPowder-Coated AluminumIvoryKingpinDouble Ball00000000000000

Threaded-Stem Leveling Casters

With Thumbwheel Adjustment

With Ratchet Adjustment

With Nut Adjustment

Install these casters into a threaded hole and adjust the leveling pad to keep your equipment stationary and compensate for uneven floors. Wheels ride directly on the axle rather than on bearings, making them an economical choice for equipment not frequently moved. Casters have double-ball swivel bearings for the smoothest swiveling.

Nylon wheels are impact and wear resistant. They work well on smooth surfaces.Polyurethane wheels combine the abrasion resistance of plastic and the vibration absorption of rubber. Use them on smooth or rough floors and in areas with debris.

Turn the thumbwheel to lower or raise the leveling pad.Ratchet pulls out for easy adjustment and retracts out of the way when not in use.Nut adjustment requires a wrench to move the leveling pad.

Shieldedbearings protect from dust and debris.

3D CAD models availableFor technical drawings and 3-D models, click on a part number.

Wheel

Adjustment

Frame

Swivel

Dia.Wd.Mount
Ht.
Cap. per
Caster,
lbs.
HardnessStem
Lg.
StyleNut
Thread
Size
Swivel
Bearing
Seal Type
MaterialChoose
a
Color
 Each

3/8"-16 Thread Size

Nonmarking Black Solid Nylon Plastic Wheels—Hard

1 3/4"11/16"2 13/16"-3 3/16"60Durometer 90D3/4"Thumbwheel__ShieldedPowder-Coated AluminumIvory0000000000000
1 3/4"11/16"2 13/16"-3 3/16"110Durometer 90D3/4"Thumbwheel__Shielded304 Stainless Steel__0000000000000

1/2"-13 Thread Size

Nonmarking Black Solid Nylon Plastic Wheels—Hard

2"1"3 1/4"-3 5/8"550Durometer 70D1 1/4"Ratchet__OpenPowder-Coated AluminumIvory000000000000
2"1"3 5/16"-3 11/16"300Durometer 90D__Thumbwheel____Powder-Coated Aluminum

Black, Ivory

000000000000
2"1"3 5/16"-3 11/16"550Durometer 90D1 1/4"Thumbwheel__Shielded304 Stainless Steel__0000000000000
2 1/2"1 1/8"4 1/16"-4 5/8"1,100Durometer 70D1 1/4"Ratchet__OpenPowder-Coated AluminumIvory000000000000
2 1/2"1 3/16"4 1/8"-4 5/8"600Durometer 90D__Thumbwheel____Powder-Coated Aluminum

Black, Ivory

000000000000

Nonmarking White Tread-on-Core Polyurethane Rubber Wheels—Hard

2"1"3 1/4"-3 5/8"550Durometer 70D1 1/4"Ratchet__OpenPowder-Coated AluminumIvory00000000000000
2"1"3 1/4"-3 5/8"550Durometer 70D1 1/4"Thumbwheel__OpenPowder-Coated AluminumIvory000000000000
2 1/2"1 1/8"4 1/16"-4 5/8"1,100Durometer 70D1 3/16"Ratchet__OpenPowder-Coated AluminumIvory0000000000000
2 1/2"1 1/8"4 1/16"-4 5/8"1,100Durometer 70D1 1/4"Thumbwheel__OpenPowder-Coated AluminumIvory000000000000

5/8"-11 Thread Size

Nonmarking Black Solid Nylon Plastic Wheels—Hard

2 7/8"1 3/16"4 3/4"-5 3/16"820Durometer 90D1 1/4"Thumbwheel__ShieldedPowder-Coated AluminumIvory000000000000
2 7/8"1 3/16"4 3/4"-5 1/2"1,100Durometer 90D1 1/4"NutM16ShieldedPowder-Coated AluminumIvory000000000000

Nonmarking White Tread-on-Core Polyurethane Rubber Wheels—Hard

2 15/16"1 3/16"4 3/4"-5 3/16"1,650Durometer 70D1 1/4"Thumbwheel__OpenPowder-Coated AluminumIvory0000000000000

M8 Thread Size

1 3/4"3/4"2 13/16"-3 3/16"60Durometer 90D3/4"Thumbwheel__ShieldedPowder-Coated AluminumIvory000000000000

M12 Thread Size

Nonmarking Black Solid Nylon Plastic Wheels—Hard

2"1"3 1/4"-3 5/8"550Durometer 70D1 3/16"Ratchet__OpenPowder-Coated AluminumIvory000000000000
2"1"3 5/16"-3 11/16"300Durometer 90D__Thumbwheel____Powder-Coated Aluminum

Black, Ivory

000000000000
2 1/2"1 1/8"4 1/16"-4 5/8"1,100Durometer 70D1 3/16"Ratchet__OpenPowder-Coated AluminumIvory000000000000
2 1/2"1 3/16"4 1/8"-4 5/8"600Durometer 90D__Thumbwheel____Powder-Coated Aluminum

Black, Ivory

000000000000

Nonmarking White Tread-on-Core Polyurethane Rubber Wheels—Hard

2"1"3 1/4"-3 5/8"550Durometer 70D1 3/16"Thumbwheel__OpenPowder-Coated AluminumIvory0000000000000
2"1"3 1/4"-3 5/8"550Durometer 70D1 1/4"Ratchet__OpenPowder-Coated AluminumIvory00000000000000
2 1/2"1 1/8"4 1/16"-4 5/8"1,100Durometer 70D1 3/16"Ratchet__OpenPowder-Coated AluminumIvory0000000000000
2 1/2"1 1/8"4 1/16"-4 5/8"1,100Durometer 70D1 3/16"Thumbwheel__OpenPowder-Coated AluminumIvory000000000000

M16 Thread Size

Nonmarking Black Solid Nylon Plastic Wheels—Hard

2 7/8"1 3/16"4 3/4"-5 3/16"820Durometer 90D1 1/4"Thumbwheel__ShieldedPowder-Coated AluminumIvory000000000000
2 7/8"1 3/16"4 3/4"-5 1/2"1,100Durometer 90D1 1/4"NutM16ShieldedPowder-Coated AluminumIvory000000000000

Nonmarking White Tread-on-Core Polyurethane Rubber Wheels—Hard

2 15/16"1 3/16"4 3/4"-5 3/16"1,650Durometer 70D1 9/16"Thumbwheel__OpenPowder-Coated AluminumIvory0000000000000

Easy-Turn Leveling Plate Casters

The dual-wheel design of these casters provides better load distribution and easier turning than other leveling casters. Turn the nut to adjust the leveling pad to keep your equipment stationary and compensate for uneven floors. Casters have sealed double-ball bearings for the smoothest swiveling and protection from dust and debris.

Phenolic wheels are nonmarking and perform well at high temperatures. They roll best on smooth surfaces.Polyurethane wheels combine the abrasion resistance of plastic with the shock-absorbing qualities of rubber. Use them on smooth or rough floors and in areas with debris.

Wheels with sealedballbearings are smooth rolling and have the best protection against dust and debris.

3D CAD models availableFor technical drawings and 3-D models, click on a part number.

Wheel

Adjustment

Mounting
Plate

Mounting
Hole
Ctr.-to-Ctr.

Wheel Bearing

Swivel

Dia.Wd.Mount
Ht.
Cap. per
Caster,
lbs.
HardnessStyleNut
Thread
Size
Lg.Wd.Lg.Wd.For
Screw
Size
TypeSeal
Type
Frame
Material
 Each

Nonmarking Black Solid Phenolic Plastic Wheels—Hard

2 1/2"1"3 3/8"-4 3/8"500Durometer 95DNut1/2"-133"3"2 3/8"2 3/8"5/16"Without Bearing__301 Stainless Steel0000000000000
3"1 1/4"4 1/8"-5 1/8"800Durometer 95DNut5/8"-113 7/8"3 7/8"3"3"3/8"Without Bearing__301 Stainless Steel0000000000000

Nonmarking Blue Solid Polyurethane Rubber Wheels—Hard

2 1/2"1"3 3/8"-4 3/8"500Durometer 75DNut1/2"-133"3"2 3/8"2 3/8"5/16"BallSealed301 Stainless Steel0000000000000
3"1 1/4"4 1/8"-5 1/8"1,000Durometer 75DNut5/8"-113 7/8"3 7/8"3"3"3/8"BallSealed301 Stainless Steel0000000000000

Adjustable-Height Floor Locks

Set these floor locks to the height you need to compensate for uneven and sloped floors. Use them to stabilize carts,trucks,workbenches, and other mobile equipment during loading and unloading. Floor locks bolt to the underside of your equipment and have a spring-loaded base with a nonskid floor pad to keep equipment stationary.

Note: Floor locks are not load rated. They are designed to brake your equipment in place, not lift it off the floor.

3D CAD models availableFor technical drawings and 3-D models, click on a part number.

Mounting
Plate

Mounting Hole
Ctr.-to-Ctr.

For Caster
Mount Ht.
Ht. RangeClearanceLg.Wd.Lg.Wd.Mounting
Fasteners Included
For Screw
Size
 Each

Side Retraction Pedal

Aluminum

6 1/2"-7 1/2"5 1/2"-8"2 1/2"4 3/4"3 3/4"3 5/8", 3"3", 2 5/8"No3/8"00000000000000
8"-10 1/2"7"-11"4"4 3/4"3 3/4"3 5/8", 3"3", 2 5/8"No3/8"0000000000000

Floor Locks

Mounting Plate Style 1

Stabilize carts,trucks,workbenches, and other mobile equipment during loading and unloading. Floor locks bolt or weld to the underside of your equipment and have a spring-loaded base with a nonskid floor pad to keep equipment stationary.

Note: Floor locks are not load rated. They are designed to brake your equipment in place, not lift it off the floor.

Pivotingbase compensates for uneven floors.

3D CAD models availableFor technical drawings and 3-D models, click on a part number.

Retraction Pedal on Both Sides with Pivoting Base

Mounting Plate Style 1

Ht.

Mounting Plate

Mounting Hole Ctr.-to-Ctr.

For
Caster
Mount Ht.
ExtendedRetractedClearanceStyleLg.Wd.Lg.
(A)
Lg.
(B)
Wd.
(A)
Wd.
(B)
Mounting
Fasteners
Included
For
Screw
Size
Color Each

Painted Iron

5 5/8"-5 7/8"5 5/8"4 9/16"1 5/16"14 13/16"4 1/4"3 5/8"3"3"2 5/8"No3/8"Gray00000000000000
7 1/4"-7 1/2"7 1/2"6"1 3/4"16 1/2"4 3/4"5 1/4"4 15/16"3 3/8"2 7/16"No1/2"Gray00000000000000
10 1/4"-10 5/8"10 1/4"9 1/8"1 3/8"16 1/2"4 3/4"5 1/4"4 15/16"3 3/8"2 7/16"No1/2"Gray00000000000000

Leveling Jacks with Wheel

A

B

C

D

Mount these jacks to equipment to raise and level it. A swivel caster lets you reposition your load.

SideMount—Slide the frame of your equipment through the mounting plate.

Through-HoleMount—Mount through a hole in the frame of your equipment; mounting plate can be bolted or welded. These jacks are commonly used with an A-frame trailer coupler.

Lockingpin locks the jack in a vertical position; pull the pin to rotate the jack into a horizontal position when not in use.

Warning: Never use to support people or loads over people.

3D CAD models availableFor technical drawings and 3-D models, click on a part number.

Capacity

For Frame

Mounting

Mounting
Plate

 tonslbs.Ht.Max.
Lift
O'all
Ht.
Ht.Dp.Handle
Lg.
Body
Material
For
Hole
Dia.
Fasteners
Included
No.
of
Holes
Hole
Lg.
Hole
Wd.
Lg.Wd.Wheel
Material
 Each

Side Mount

A1/47507 1/2"-23 1/2"16"27 7/8"0"-5"1 7/8"-2 7/8"5 1/2"Steel__Yes__________Plastic0000000000000
B1/21,00010 13/16"-25 1/2"14 11/16"33 7/8"3"-5"2"-3"6 1/8"Steel__Yes__________Plastic000000000000

Side Mount with Locking Pin

C1/21,20012 1/2"-22 1/2"10"28 1/8"2"-4"1 1/2"-3"6"Steel__Yes__________Plastic0000000000000
C3/41,50012 7/8"-22 7/8"10"31 5/8"3"-5"2"-3"6 1/8"Steel__Yes__________Plastic0000000000000

Through-Hole Mount

D1/21,2008 5/8"-21 5/8"13"35 5/8"____6 1/2"Steel2 1/4"No37/16"13/16"5 7/16"4 1/4"__0000000000000

T-Slotted Framing Mounting Feet and Casters

Add mounting feet and casters to T-slotted framing structures to level equipment, anchor legs to the floor, or add mobility.

3D CAD models availableFor technical drawings and 3-D models, click on a part number.

Hydraulic Lift Caster

Hydraulic Lift Caster

Hydraulicliftcasters allow you to move heavy equipment, then set it in place on leveling feet. To use, mount the casters and pump on T-slotted framing and connect the casters to the pump with the included tubing. Use the hand crank to raise and lower the casters.

For Rail Ht.

Wheel

SingleDouble,
Quad
TripleLg.Wd.Cap.,
lbs.
ColorMaterialDia.MaterialIncludes Each
1 1/2"
40mm
45mm
3"
80mm
90mm
4 1/2"18 3/4"9 7/8"4,400SilverAluminum3 1/8"Plastic4 Swivel Casters, Hydraulic Pump with Hand Crank, Hydraulic Tubing, Mounting Fasteners00000000000000000
Sours: /leveling-casters/

Caster wheels leveling

Stationary Solutions: Leveling Casters

Leveling casters are adjustable-height casters that are ideal for heavier weight loads. They’re great for mobile workspaces, workshop machinery, and hospital equipment. Leveling casters are also a solution for noise reduction related issues. And, as the name implies, they will keep your application level.

Floor Leveling

The caster uses an anti-vibration pad to secure it to the floor. Once the pad is lowered, the application will not move. Unlike a locked swivel caster, the pad won’t wobble and will remain stable. Leveling casters also have a lower profile to help keep the application close to its original overall height.

The wheel is made of hard nylon and won’t mark or scrape flooring. The die-cast aluminum fork allows it to carry extremely heavy weight loads of up to one ton.

LV0300V4-2-Inch-Nylon-Leveling-Caster-1

USING A LEVELING CASTER

Caster Connection’s leveling casters are mounted via a top plate but are available with a hollow kingpin for M12 stems (located in the “fastener” drop down tab). Once the caster is mounted to the application, the anti-vibration pad can be lowered, making the application stationary.

These particular leveling casters have a thumbwheel adjustment. Turn the wheel with your thumb to easily raise or lower the anti-vibration pad. Caster Connection currently sells two sizes of leveling casters; both have overall heights under five inches. The LV1000Vhas an overall height of 4.72” and can be adjusted up to 0.79”. The LV0300V4 has an overall height of 3.23” and can be adjusted up to 0.47”.

LV0300V4-2-Inch-Nylon-Leveling-Caster-2

If you’re looking for a practical solution to make your application stationary, quiet and sturdy, Caster Connection’s nylon leveling casters will level you up!

*If you want to make your application permanently stationary, try our table glides.

Sours: https://casterconnection.com/blog/stationary-solutions-leveling-casters
Simple Retractable Casters for Workbench

"Oh, cutie, now you can finish off a free blowjob for me "- said the Gopher, coming up, and poked his dick in the lips. I clenched my teeth, not intending to suck this pervert. He grinned, stepped back and kicked me in the stomach.

You will also be interested:

Yes, she squeaked, not looking the man in the eye… I knew it. Where do you work. - Nowhere.



819 820 821 822 823
